Manufacturer : AOS RC / Référence : FF15491

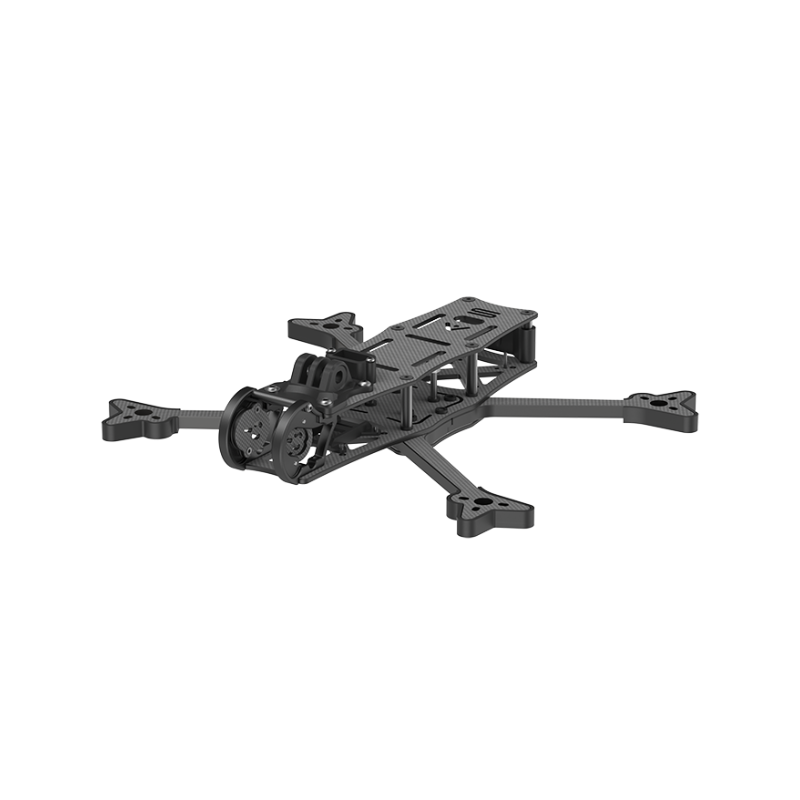

AOS 5" V5 Frame Kit By Iflight
En stock
€107.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Discover the future of 5" FPV with the AOS 5 V5, designed to revolutionize your freestyle experience.
Compatible with VTX O3, Vista and Blitz systems, this fifth version has three stack mounting choices, a field of view no propellers in view and AOS X-Cell anti-vibration technology.
The AOS 5 V5 is the ultimate choice for drone enthusiasts.
Bullet points
- Supports up to 5.2" Props
- AOS X-Cell Anti-Vibration Technology
- Three 30.5x30.5, 25.5x25.5, or 20x20 mm stacks
- 155° FOV no props in view
- Fully DJI O3 compatible (soft mount + ND filters)
- Supports 19-20mm cameras (hard or soft mounted)
- Reinforced 7075 Aluminium Camera Cage
- Supports Lengthwise or Toilet Tank battery mounting
- ⌀16 - ⌀19mm motor mounting (supports all standard 5" motors)
- 28x28mm M3 GoPro Mounting Pattern
- 32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)
Specifications
- Frame wheelbase: 228mm
- Frame Dimension: L180*W140*H34 mm
- Arm Thickness: 6mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2mm
- Upper Plate Thickness: 2.5mm
- Max Flight Stack Height: 20mm
- Max VTX Height: 20mm
- Connector : XT60
- Motor Mounting: 19x19-φ3mm/16x16-φ3mm
- Flight Stack Mounting: 20*20 Φ3mm / 25.5*25.5 Φ2mm / 30.5*30.5 Φ3mm
- VTX Mounting: 20*20 ⌀2mm / 25.5*25.5 Φ2mm/30.5*30.5 Φ3mm
- Weight: 150g
- Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX
Included
- 1x AOS 5 V5 Frame Kit
- 1x TPU Parts
- 2x Battery pad
- 1x Screw Bag
- 2x Battery Strap
