Manufacturer : TrueRC / Référence : CORE-RPSMA-80MM-LHCP

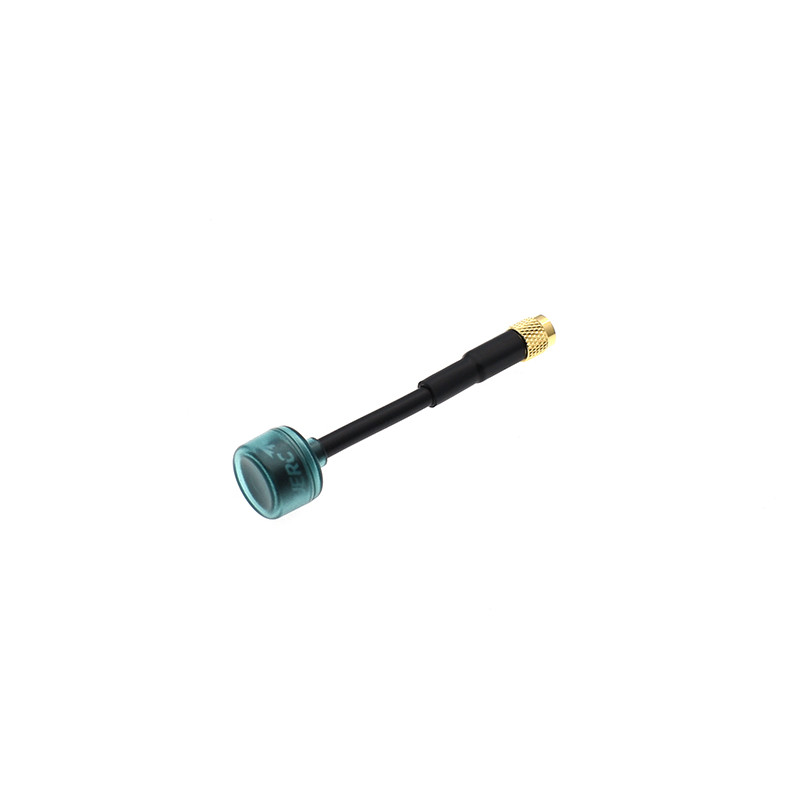

CORE 5.8 - RP-SMA 80mm Antenna - LHCP By TrueRC

En stock
€16.90
Color : Red
Color : Red Color : Grey Color : Teal

2 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

TrueRC's CORE 5.8 antennas are unique in having a refined RF design that provides excellent consistency across units and different cable configurations.

A very durable outer shell protects these antennas from crashes.

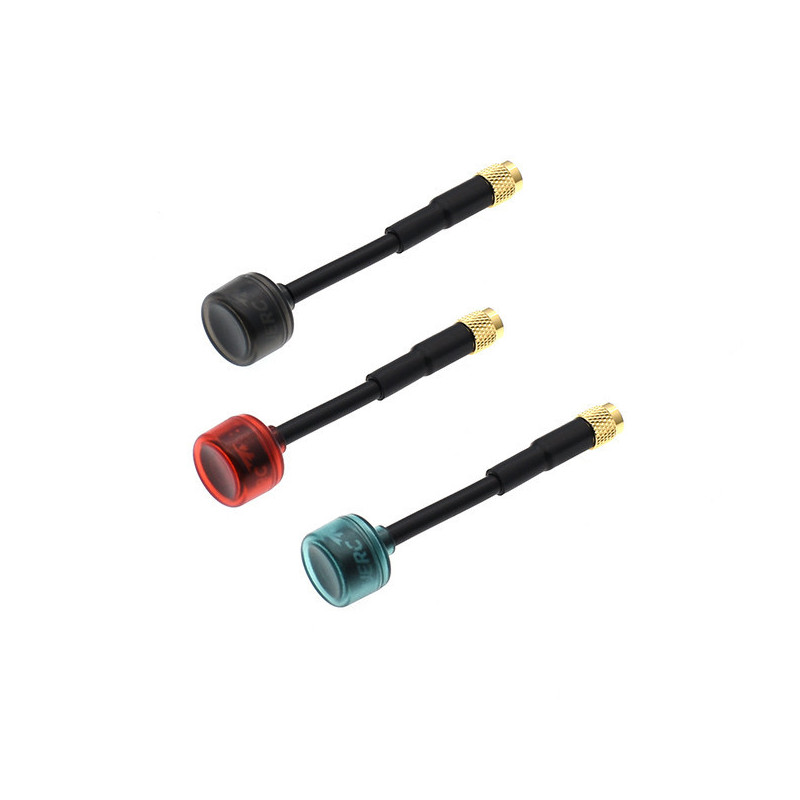

The CORE are available in three colors to best suit your style!

Bullet points

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarization direction
  • Smooth radiation pattern with even gain in all directions
  • Excellent axial ratio and efficiency
  • Flexible coax cable option that deflect impacts
  • Exclusive knurled True-SMA for easy tightening

Specifications

  • Gain : 1.9dBic
  • Polarization : LHCP
  • Length : 80mm
  • Connector : RPSMA
  • Cross-Polar Rejection : -10 to -20dB
  • Bandwidth : 5.5GHz-6.1GHz
  • Radiation Efficiency : 98%
  • SWR : <=1.2:1
  • Dimensions(head) : 16.9mm dia. x 13.1mm height.
  • Cable : TrueRC RG316S/RG402/RG178 coax

Included

  • 1x Core 5.8 antenna
