Manufacturer : Holybro / Référence : 11065

Kakute H7 V1.3 By Holybro

Hors stock
€104.90
Out-of-Stock Notify me when the product is available again

11 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

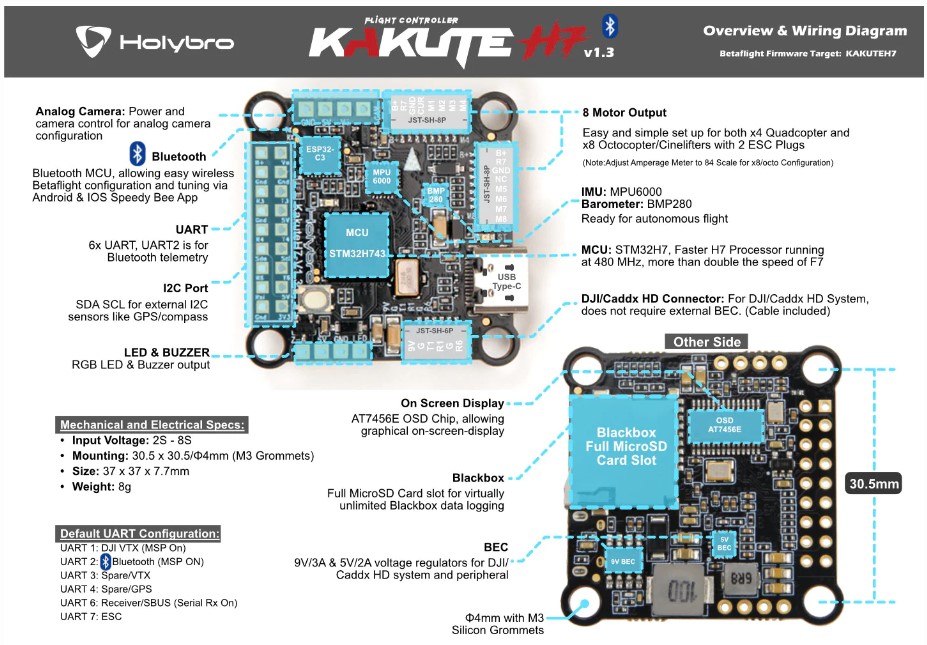

The Holybro Kakute H7 V1.3 flight controller has a USB-C connector, a 9V 3A BEC, integrated Bluetooth, an HD camera socket and a barometer.

The FC builds on the best features of its predecessor and improves the components as well as the layout.

DJI and analog compatible, you can make your Betaflight settings on your phone via the app.

A MicroSD card slot is also available for virtually unlimited blackbox data logging.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Specifications

  • MCU - STM32H743 32-bit processor running at 480 MHz
  • IMU - MPU6000
  • Barometer - BMP280
  • OSD - AT7456E
  • Onboard Bluetooth chip - ESP32-C3
  • SpeedyBee IOS & Android App Compatible
  • 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
  • 9x PWM Outputs (8 Motor Output, 1 LED)

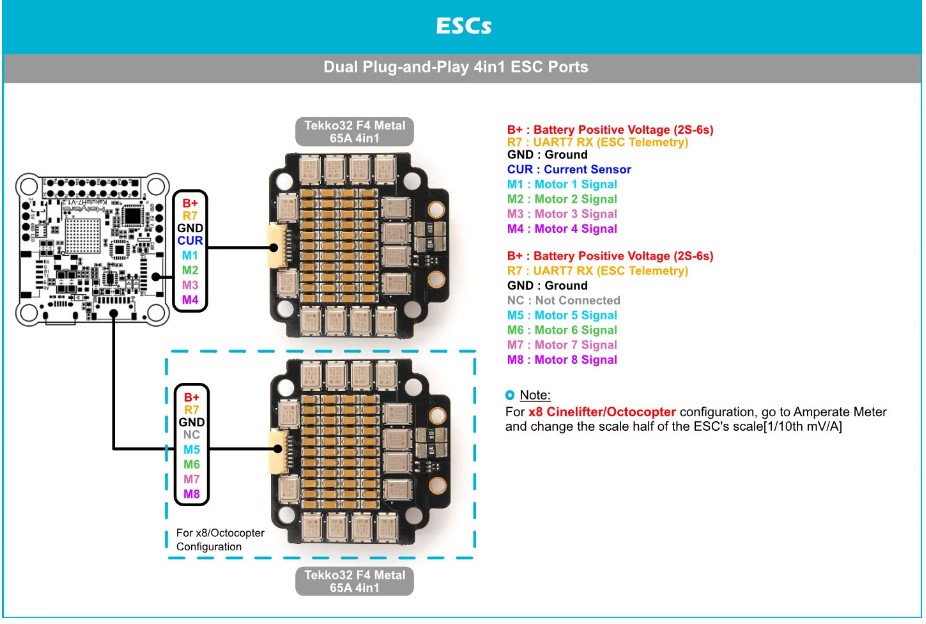

  • 2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)
  • 1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)
  • Battery input voltage: 2S - 8S
  • BEC 5V 2A Cont.
  • BEC 9V 3A Cont
  • USB Type-C
  • Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
  • Dimension - 35x35mm
  • Weight - 8g

Included

  • 1x Kakute H7 V1.3 Flight Controller
  • 4x M3 Silicon Grommets
  • 2x JST-SH1.0_8pin 150mm Cable (For ESCs)
  • 2x JST-SH1.0_6pin 80mm & 150mm Cable (For DJI Air Unit)
  • 1x JST-SH1.0_6pin Colored Silicon 150mm Cable (For Caddx HD System and other VTX)
