Manufacturer : Diatone / Référence : JH61223
Mamba Basic F405 MK2 V2 F55_BLS Stack By Diatone
Hors stock
€87.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

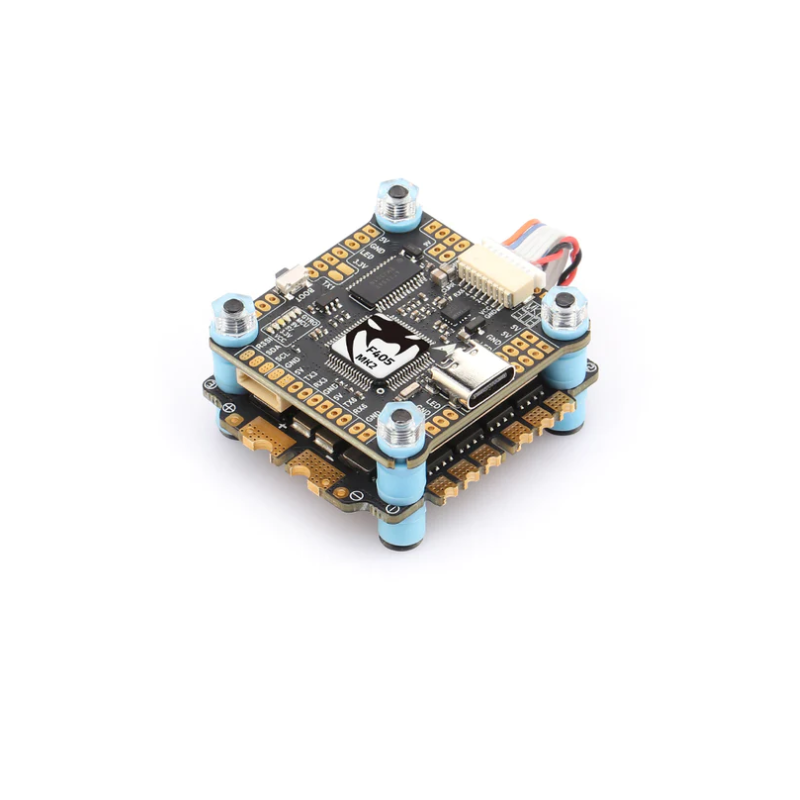

Here is the Stack Mamba Basic F405 MK2 V2 55A from Diatone.
It consists of an MPU6000 gyro, a 16Mb blackbox, an AT7456E OSD and is mounted in 30.5x30.5mm.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

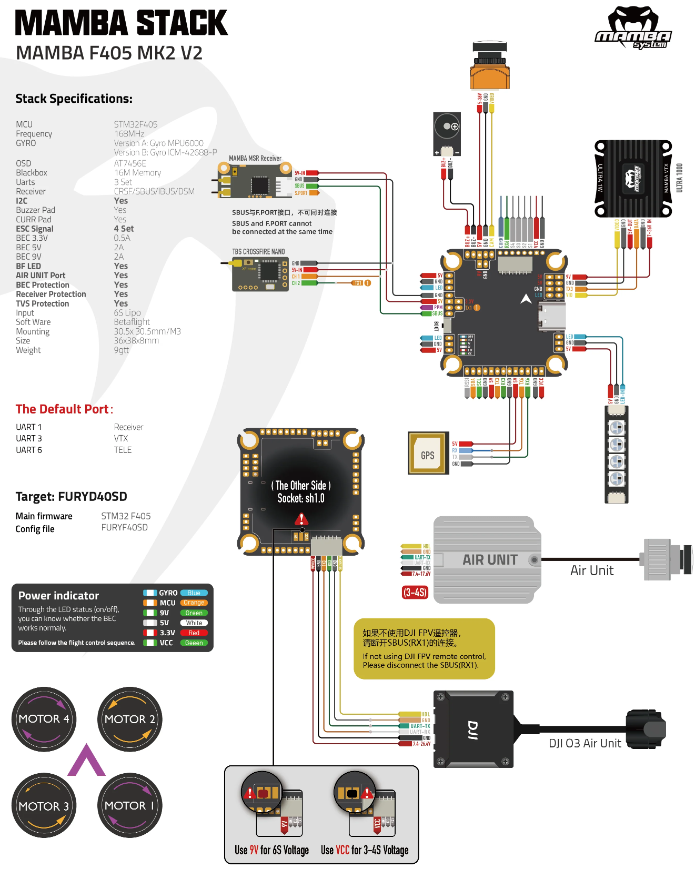

F405 MK2 V2 FC
- MCU: STM32F405
- Frequency: 168MHz
- Gyro: MPU6000
- OSD: AT7456E
- Blackbox: 16Mb
- UARTS: 3 sets
- Receiver: CRSF/SBUS/IBUS/DSM
- I2C: Yes
- Buzzer pad: Yes
- CURR pad: Yes
- ESC signal: 4 set
- BEC 3.3V: 0.5A
- BEC 5V: 2A
- BEC 9V: 2A
- BF LED: Yes
- Air unit port: Yes
- BEC protection: Yes
- Receiver protection: Yes
- TVS protection: Yes
- Voltage: 6S
- Software: Betaflight
- Mounting: 30.5x30.5mm/M3
- Size: 36*38*8mm
- Weight: ~9g
Mamba F55_BLS ESC
- Input : 4~6S LiPo
- Current : 55Ax4
- Burst : 65A (10s)
- Protocol : Dshot 300/600
- Mounting : 30.5x30.5mm
Included
- 1x Mamba Basic F405 MK2 V2 F55 Stack
- 1x Set dampers
- 1x XT60 male connector
- 1x ZLH 35V 1000uF Capacitor
- 1x Hardware set
- 2x 12AWG silicone cable
