Manufacturer : Radiomaster / Référence : HP0157.RX-RP4TD-M-LBT

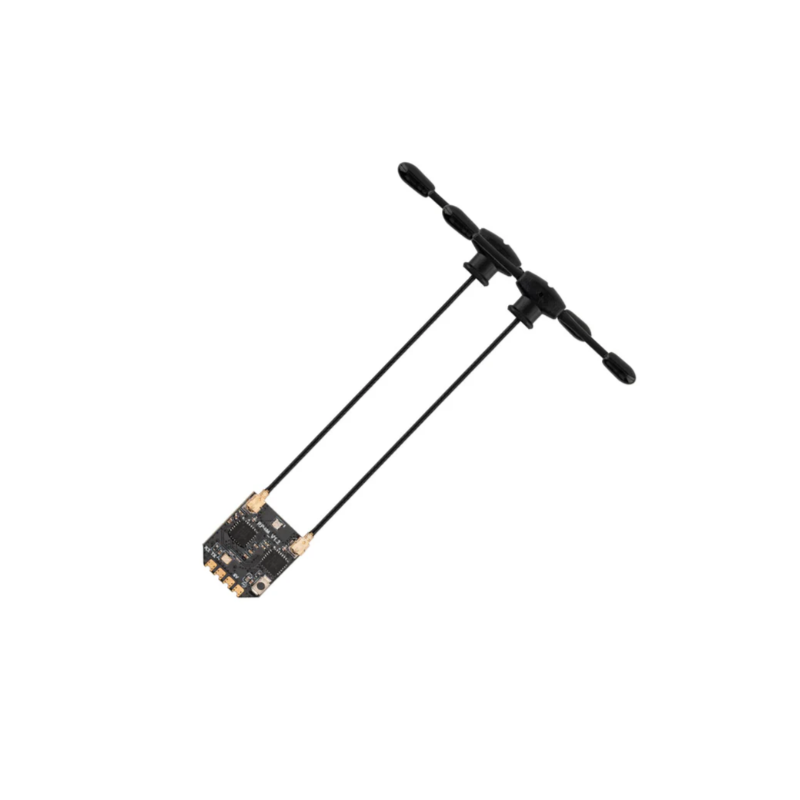

RP4TD ELRS 2.4G Mini True Diversity Receiver By RadioMaster
Hors stock
€22.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Related products
Technical characteristics
RadioMaster's RP4TD-M in a compact and lightweight version designed for optimum performance!
Weighing only 1g, this receiver is ideal for builds where every gram counts, while taking advantage of Gemini's interference-mitigating technology.
The RP4TD-M features dual-channel 2.4GHz radios offering signal sensitivity and a good signal-to-noise ratio.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
- Type: ISM
- MCU: ESP32
- RF Chip: SX1281 x 2
- Antenna: 65mm 2.4GHz T Antenna x 2
- Frequency Range: 2.4GHz
- Maximum Refresh Rate: 500Hz / F1000Hz
- Telemetry RF Power: Max 2x 10mW
- Working Voltage: DC 5.0V
- Wifi Updates: Yes
- Weight: 1.00g [Without antennas] / 3.30g [With antennas]
- Dimension: 18.10 x 16.0mm
- Firmware Version: ExpressLRS V3.4.3 pre-installed
- FW Target: RadioMaster RP4TD-M 2400 RX
- Bus interface: CRSF
Bullet points
- Mini size true diversity Gemini receiver
- Class leading SNR and RSSI performance
- Built-in TCXO (temperature compensated crystal oscillator)
- Optimized PCB design for better heat dissipation
- Upgraded antenna with greater durability and performance
- 2 x 10mW RF Telemetry power output
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Included
- 1x RP4TD-M ExpressLRS 2.4GHz Diversity Receiver
- 1x CRSF wire
- 3x Heat-Shrinkable Tube
- 2x 65mm 2.4GHz T Antenna (Installed on receiver)
- 1x User Manual
