Soldering Free Kit - Valkyrie - ELRS + GPS
Related accessories
Technical characteristics
Buying a ready-made BNF is too simple for you but are you still looking to save time or are welding not your passion?
We selected the components, we took care of the soldering and offer you this kit composed of the Bando Killer V2 frame from Lethal Conception as well as all the "Plug & Play" electronic elements requiring NO SOLDERING!
Once this part is completed quickly thanks to this Plug & Play kit, all you will have to do is manage the adjustment/parameterization aspect (Betaflight/radio/goggles etc...).
This Plug and Play version is aimed at everyone but will particularly allow those who want to start FPV without taking the risk of damaging your equipment during your first builds (or simply save time for experts).
The goal is to encourage everyone to build their FPV drone but a little help never hurts😊
Valkyrie 5.1"
- Weight (carbon and hardware): 135g
- Weight (carbon, hardware and TPU): ~150g
- Geometry: squished X 225mm split deck
- Arm thickness: 6mm
- Top plate thickness: 2.5mm
- Front bottom plate thickness: 2.5mm
- Rear bottom plate thickness 2.5mm
- Flat camera thickness: 3mm
- Propeller size: 4.9" to 5.1"
- Stack compatibility: 30.5mm / 20mm
- VTX compatibility: O3, Walksnail V1, Walksnail V2, HDZero Race V3, analog
- Camera compatibility: 14 to 21mm, any mounting hole type
- Carbon: T700 matte chamfered
- Screws: 12.9 steel screws, aluminum spacers
- Height at the front: 30mm
- Height at the back: 21.5mm
Recommended parts
(not included)
- Props : 5"
- Battery : LiPo 6S 1300-1400mAh 100C
- Radio: ExpressLRS 2.4G (ELRS) protocol (Ex radio: Radiomaster Zorro ELRS, Boxer ELRS, TX16S ELRS...)
- Goggles : DJI Goggles 2 / DJI Integra / DJI FPV V2 Goggles
- 6S charger

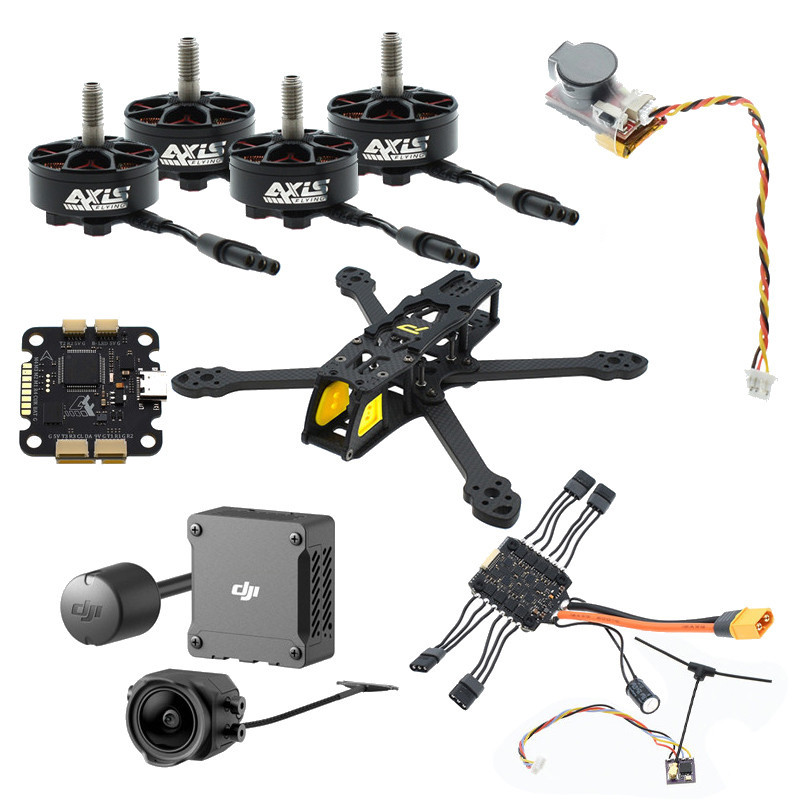

Included
- 1x Valkyrie Parallax
- 4x C246 - 1850KV MR30 Motor AxisFlying
- 1x DJI O3 Air Unit
- 1x Stack Argus F722 55A P&P AxisFlying
- 1x TCXO EL24P ELRS 2.4 receiver
- 1x Finder 2 P&P buzzer Vifly
- 1x Free TPU M10Q GPS mount
Soldering Free Kit - Valkyrie - ELRS + GPS
