Manufacturer : GEPRC / Référence : GP107201
Taker F745 BT 8Bit 60A Stack By GEPRC
En stock
€89.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

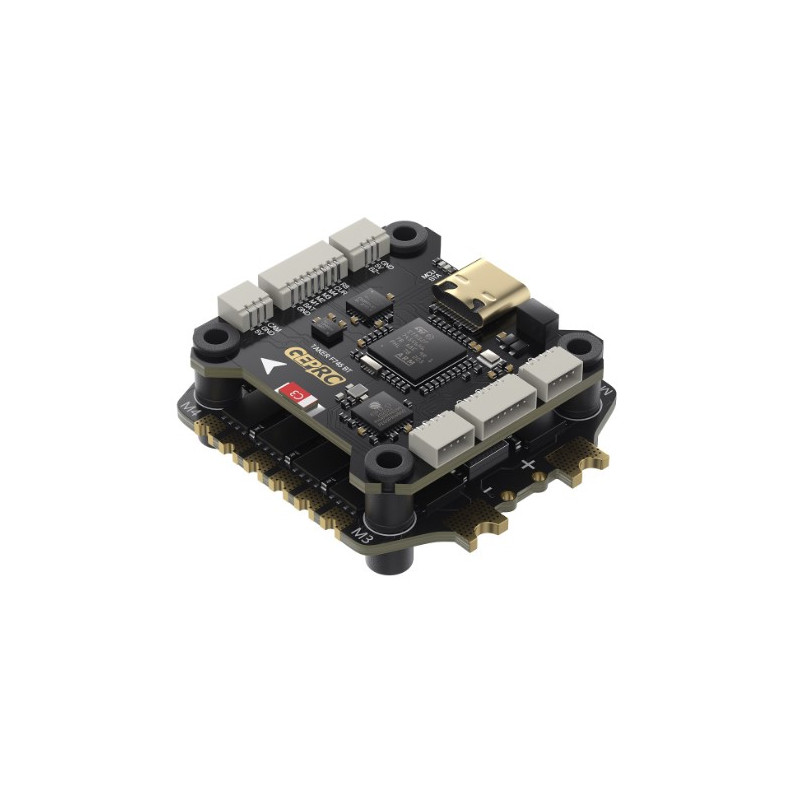

This GEPRC stack consists of the TAKER F745 BT flight controller and the TAKER H60_BLS 60A 4in1 ESC and is mounted in 30.5*30.5mm.
The FC has ICM42688-P and MPU6000 gyros, which ensures more precise control. 512MB of integrated blackbox, a DJI plug&play connector, a barometer and integrated Bluetooth add to the many features of the F745. In addition, it offers 8 motor output ports and is therefore compatible with X8 models.
For its part, the ESC supports BLHeli_S and Dshot 150/300/600.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
F745 BT FC
- MCU: STM32F745
- IMU: MPU6000 + ICM42688-P(dual gyro)
- Air Unit Connection: direct plug for DJI Air Unit
- Black Box：512M onboard
- Bluetooth: Supported
- Barometer: Supported
- USB Interface: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@3A,[email protected] dual BEC
- Target: GEPRCF745_BT_HD
- Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
- Input Voltage: 3-6S LiPo
- UART Ports: 7 groups (UART3 fixed for Bluetooth)
- Power Filtering: Integrated LC filter
- Weight: 8.4g
TAKER H60 BLS 60A 4in1 ESC
- Input Voltage: 3-6S Lipo
- Continuous Current: 60A
- Peak Current: 65A（5 seconds）
- Supported Protocol: Dshot 150/300/600
- Dimension：42×45.7mm, mounting hole size 30.5×30.5mm
- Weight: 14.9g
- Target: B_X_30
Bullet points
- Adopts the high-performance STM32F745 as the main controller
- Equipped with MPU6000 and 42688-P dual gyroscopes
- 512MB high-capacity black box storage
- Bluetooth parameter tuning
- Upgraded Type-C USB interface
- Plug-and-play, no soldering required.
- Integrated barometer
- Features 7 UART ports
- Independent BEC with [email protected] and 5V@3A outputs
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.
Included
- 1x FC board
- 1x ESC board
- 1x Capacitor
- 1x O3 3in1 connection cable
- 1x FC adapter cable
- 1x SH1.0 4pin silicone cable
- 1x VTX connection cable
- 1x Buzzer connection cable
- 1x XT60 power cable
- 4x M3*30 screw
- 4x M3*25 screw
- 8x Nylon nut
- 12x Silicone anti-shake pad
